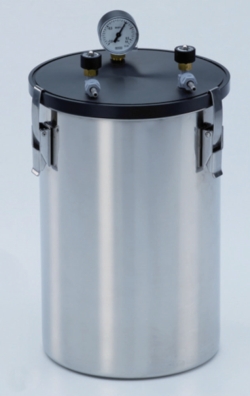

Anaerobic jars, stainless steel, with manometer

For the cultivation of anaerobic and microaerophilic microorganisms in a defined and rapidly generated gas atmosphere.The requested atmosphere may be reached under ideal conditions by two methods. Either by using chemical gas packs (anaerobe systems) or by manually evacuating the jars with a vacuum pump and flushing with gas afterwards (e.g. with nitrogen), in this case no chemical accessories are needed (except anaerobic jar eco and crystal eco). The jars are made of robust stainless steel or transparent PC.

The optional racks are made of stainless steel providing holders for comfortable operation of the anaerobe systems.

Customized: Other equipment available upon request. Examples: customized lids, e.g. made of special or heat-resistant materials e.g. stainless steel, heat-resistant pressure gauges (up to 100 °C), also without cocks/manometer available.
The lids are made of UV-resistant plastic with two corner valves incl. tube clips for vacuum hoses (5 mm i.d.) and with manometer for exact control of the vacuum or overpressure from -1 to 0.2 bar.

Methods for reaching anaerobic conditions: 3 x times evacuating and filling gas, flushing with gas for 5 minutes and chemical gas production (GasPacks) for Anaerobic jars "small", "standard" and "large".
With pressure gauge:Yes
9.520 051


9.520 051
X

Item added to basket.

Anaerobic jars, stainless steel, with manometer

Customers also bought:

TypeNominal capacity
l
Dim. Int.
(Ø x H)
No. of petri dishesPetri dishes ØPKCat. No.in StockManuf. Prod. No.
small2120 x 170 mm1060 ... 100 mm195200513380202
standard3120 x 270 mm1560 ... 100 mm195200563 3380302
large6175 x 260 mm1560 ... 150 mm195200503380102
Accessories:
 Accessories for anaerobic jars / schuett-biotec
Racks for anaerobic jars / schuett-biotec
