Ashing/Burn off furnaces LV 3/11 - LVT 15/11

The models LV 3/11 - LVT 15/11 are especially designed for ashing in the laboratory. A special air intake and exhaust system allows air exchange of more than 6 times per minute. Incoming air is preheated to ensure a good temperature uniformity.

Tmax 1100°C
Heating from two sides
Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
Insulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2
Housing made of sheets of textured stainless steel
Dual shell housing for low external temperatures and stability

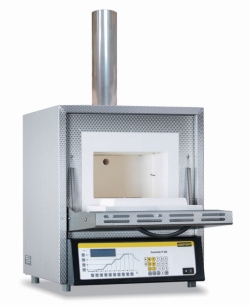

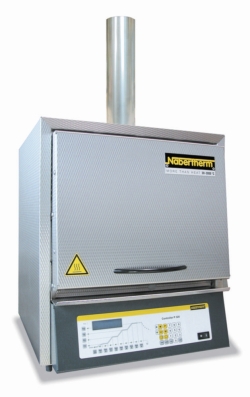

Optional flap door (LV) which can be used as work platform or lift door (LVT) with hot surface facing away from the operator
Solid state relays provide for low noise operation
Air exchange of more than 6 times per minute
Good temperature uniformity due to preheating of incoming air
220-240 V 1/N/PE 50/60 Hz connector as standard

Option:

Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
Observation hole in the oven door
Process control and documentation via VCD software package for monitoring, documentation and control

Max. temperature:	1100 °C
Power supply:	240 V, 50/60 Hz


6.239 505

Item added to basket.

Ashing/Burn off furnaces LV 3/11 - LVT 15/11

continue shopping go to basket

Customers also bought:

Type	Nominal capacity l	Int. Dim. (WxDxH)	Ext. dim. (WxDxH)	Rated capacity kW	PK	Cat. No.	Manuf. Prod. No.
LV 3/11/B510	3.0	160 x 140 x 100 mm	385 x 360 x 735 mm	1.2	1	6239505	LV035K11NL
LV 5/11/B510	5.0	200 x 170 x 130 mm	385 x 420 x 790 mm	2.4	1	6228436	LV055K11NL
LV 9/11/B510	9.0	230 x 240 x 170 mm	415 x 485 x 845 mm	3	1	6204399	LV095K11NL
LV 15/11/B510	15.0	230 x 340 x 170 mm	415 x 585 x 845 mm	3.5	1	6321353	LV155K11NL
LV 3/11/C550	3.0	160 x 140 x 100 mm	385 x 360 x 735 mm	1.2	1	9764575	LV035K11NO
LV 5/11/C550	5.0	200 x 170 x 130 mm	385 x 420 x 790 mm	2.4	1	6233889	LV055K11NO
LV 9/11/C550	9.0	230 x 240 x 170 mm	415 x 485 x 845 mm	3	1	9764576	LV095K11NO
LV 15/11/C550	15.0	230 x 340 x 170 mm	415 x 585 x 845 mm	3.5	1	9764577	LV155K11NO
LVT 3/11/B510	3.0	160 x 140 x 100 mm	385 x 360 x 735 mm	1.2	1	9764578	LV035H11NL
LVT 5/11/B510	5.0	200 x 170 x 130 mm	385 x 420 x 790 mm	2.4	1	9764580	LV055H11NL
LVT 9/11/B510	9.0	230 x 240 x 170 mm	415 x 485 x 845 mm	3	1	6232352	LV095H11NL
LVT 15/11/B510	15.0	230 x 340 x 170 mm	415 x 585 x 845 mm	3.5	1	6235611	LV155H11NL
LVT 3/11/C550	3.0	160 x 140 x 100 mm	385 x 360 x 735 mm	1.2	1	9764579	LV035H11NO
LVT 5/11/C550	5.0	200 x 170 x 130 mm	385 x 420 x 790 mm	2.4	1	6256163	LV055H11NO
LVT 9/11/C550	9.0	230 x 240 x 170 mm	415 x 485 x 845 mm	3	1	6255458	LV095H11NO
LVT 15/11/C550	15.0	230 x 340 x 170 mm	415 x 585 x 845 mm	3.5	1	6235610	LV155H11NO

Type LV 3/11/B510

Nominal capacity 3.0l

Int. Dim. 160 x 140 x 100 mm(WxDxH)

Ext. dim. 385 x 360 x 735 mm(WxDxH)

Rated capacity 1.2kW

Cat. No. 6.239 505

Type LV 5/11/B510

Nominal capacity 5.0l

Int. Dim. 200 x 170 x 130 mm(WxDxH)

Ext. dim. 385 x 420 x 790 mm(WxDxH)

Rated capacity 2.4kW

Cat. No. 6.228 436

Type LV 9/11/B510

Nominal capacity 9.0l

Int. Dim. 230 x 240 x 170 mm(WxDxH)

Ext. dim. 415 x 485 x 845 mm(WxDxH)

Rated capacity 3kW

Cat. No. 6.204 399

Type LV 15/11/B510

Nominal capacity 15.0l

Int. Dim. 230 x 340 x 170 mm(WxDxH)

Ext. dim. 415 x 585 x 845 mm(WxDxH)

Rated capacity 3.5kW

Cat. No. 6.321 353

Type LV 3/11/C550

Nominal capacity 3.0l

Int. Dim. 160 x 140 x 100 mm(WxDxH)

Ext. dim. 385 x 360 x 735 mm(WxDxH)

Rated capacity 1.2kW

Cat. No. 9.764 575

Type LV 5/11/C550

Nominal capacity 5.0l

Int. Dim. 200 x 170 x 130 mm(WxDxH)

Ext. dim. 385 x 420 x 790 mm(WxDxH)

Rated capacity 2.4kW

Cat. No. 6.233 889

Type LV 9/11/C550

Nominal capacity 9.0l

Int. Dim. 230 x 240 x 170 mm(WxDxH)

Ext. dim. 415 x 485 x 845 mm(WxDxH)

Rated capacity 3kW

Cat. No. 9.764 576

Type LV 15/11/C550

Nominal capacity 15.0l

Int. Dim. 230 x 340 x 170 mm(WxDxH)

Ext. dim. 415 x 585 x 845 mm(WxDxH)

Rated capacity 3.5kW

Cat. No. 9.764 577

Type LVT 3/11/B510

Nominal capacity 3.0l

Int. Dim. 160 x 140 x 100 mm(WxDxH)

Ext. dim. 385 x 360 x 735 mm(WxDxH)

Rated capacity 1.2kW

Cat. No. 9.764 578

Type LVT 5/11/B510

Nominal capacity 5.0l

Int. Dim. 200 x 170 x 130 mm(WxDxH)

Ext. dim. 385 x 420 x 790 mm(WxDxH)

Rated capacity 2.4kW

Cat. No. 9.764 580

Type LVT 9/11/B510

Nominal capacity 9.0l

Int. Dim. 230 x 240 x 170 mm(WxDxH)

Ext. dim. 415 x 485 x 845 mm(WxDxH)

Rated capacity 3kW

Cat. No. 6.232 352

Type LVT 15/11/B510

Nominal capacity 15.0l

Int. Dim. 230 x 340 x 170 mm(WxDxH)

Ext. dim. 415 x 585 x 845 mm(WxDxH)

Rated capacity 3.5kW

Cat. No. 6.235 611

Type LVT 3/11/C550

Nominal capacity 3.0l

Int. Dim. 160 x 140 x 100 mm(WxDxH)

Ext. dim. 385 x 360 x 735 mm(WxDxH)

Rated capacity 1.2kW

Cat. No. 9.764 579

Type LVT 5/11/C550

Nominal capacity 5.0l

Int. Dim. 200 x 170 x 130 mm(WxDxH)

Ext. dim. 385 x 420 x 790 mm(WxDxH)

Rated capacity 2.4kW

Cat. No. 6.256 163

Type LVT 9/11/C550

Nominal capacity 9.0l

Int. Dim. 230 x 240 x 170 mm(WxDxH)

Ext. dim. 415 x 485 x 845 mm(WxDxH)

Rated capacity 3kW

Cat. No. 6.255 458

Type LVT 15/11/C550

Nominal capacity 15.0l

Int. Dim. 230 x 340 x 170 mm(WxDxH)

Ext. dim. 415 x 585 x 845 mm(WxDxH)

Rated capacity 3.5kW

Cat. No. 6.235 610

Height incl. exhaust tube (diam. 80 mm)
External dimensions vary for versions with additional equipment. Dimensions on request.

Accessories:

Charging rack for ashing furnaces / Nabertherm
