Kern & Sohn

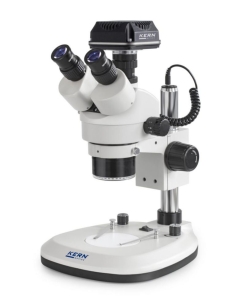

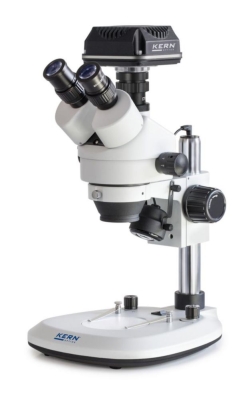

Digital microscope set OZL, with C-mount camera

The set is the digital solution, with zoom function, for schools, training companies, inspection authorities and laboratories.

  • Optical system: Greenough optics
  • Diopter adjustment both-sided
  • Stand (464, 466): pillar
  • Stand (468): mechanic
  • Illumination: 3 W-LED incident, 3 W-LED transmitted


Scope of supply:
Stereo zoom microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Magnification eyepieces:HWF 10x/ 20 mm
Magnification objectives:0,7x ... 4,5x
Inclination angle tube:45°
Interpupillary distance:55 ... 75 mm
Light type:LED
Resolution camera:5 MP
Sensor:CMOS 1/2,5"
Dimensions (WxDxH):300 x 240 x 420 mm
Weight:5 kg
Plug type:EU
Power supply:230 V, 50 Hz
Digital microscope set OZL, with C-mount camera


Digital microscope set OZL, with C-mount camera
X

Se ha añadido este artículo al carrito de la compra.

Digital microscope set OZL, with C-mount camera

seguir comprandoir al carrito de la compra

Otros clientes también compraron:

TypeTubeInterfacesPKCat. No.ExistenciasRef. Fabricante
OZL 464C825TrinocularUSB 2.0 (6,8 ... 55 FPS)16314090OZL 464C825
OZL 466C825TrinocularUSB 2.0 (6,8 ... 55 FPS)14691120OZL 466C825
OZL 468C825TrinocularUSB 2.0 (6,8 ... 55 FPS)14691121OZL 468C825
OZL 464C832TrinocularUSB 3.0 (14,2 ... 101,2 FPS)14691119OZL 464C832
OZL 466C832TrinocularUSB 3.0 (14,2 ... 101,2 FPS)16320534OZL 466C832
OZL 468C832TrinocularUSB 3.0 (14,2 ... 101,2 FPS)14691122OZL 468C832
