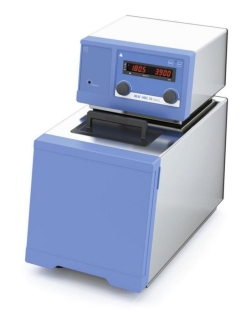

Heated bath circulators HBC basic, with stainless steel bath

Heated bath circulators with stainless steel bath for operating temperatures up to 250 °C. Easy switching between internal and external control. With integrated cooling coil and powerful pressure and suction pump in a housing made of temperature and chemical resistant plastic. The large surface of the radiator allowes for an optimum heat exchange, even heating of the medium and very fast heat-up times. The bath is easy to clean and has a drain valve with hose connection on the front for draining the bath. Can be operated with flammable liquids.

  • Adjustable safety circuit
  • Simple menu navigation with push buttons and rotary knobs
  • Visual and audible warning functions
  • USB/RS 232 interface
  • With large, easy-to-read LED display
Material bath:Stainless steel
Temperature:RT+10 ... 250 °C
Temperature stability:0,02 K
Max. flow rate:31 l/min
Max. delivery pressure:0.61 bar
Max. suction pressure:0.45 bar
Type of display:LED
Heating capacity:2500 W
Opening (WxD):172 x 82 mm
Bath depth:150 mm
Power supply:230 V, 50/60 Hz
IP code:IP 21
Heated bath circulators HBC basic, with stainless steel bath


Heated bath circulators HBC basic, with stainless steel bath
X

Item added to basket.

Heated bath circulators HBC basic, with stainless steel bath

Customers also bought:

TypeVolume bathExt. dim.
(WxDxH)
Weight
kg
PKCat. No.in StockManuf. Prod. No.
HBC 5 basic5 ... 7 l275 x 500 x 406 mm17197203190004125000
HBC 10 basic8 ... 11 l275 x 500 x 456 mm18197203210004135000
