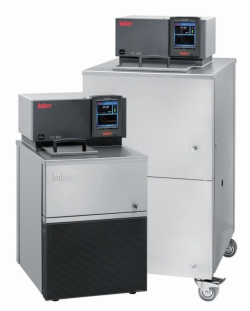

Refrigerated Bath Circulators to -90°C

The CC-805 is a low cost alternative for low temperature applications when low power is required.
Option: Natural refrigerant available on request

Pump data CC-805 to CC-906w:
Max. pressure: Max. suction:	25 L/min / 0.7 bar 18.5 L/min / 0.4 bar
Supply requirement: CC-805 / CC-902:	400 V 50 Hz 230 V 50 Hz
Temp. stability acc. to DIN 12876:	0.02 K


Refrigerated Bath Circulators to -90°C

Item added to basket.

Refrigerated Bath Circulators to -90°C

continue shopping go to basket

Customers also bought:

Type	Bath capacity L	Bath tank depth mm	Heating capacity W	Cooling capacity KW at 100/20/0/-20/-40/-60°C	Working Temp. range °C	PK	Cat. No.	Manuf. Prod. No.
CC-805	5	150	1500	0.5 / 0.5 / 0.5 / 0.4 / 0.3 / 0.3	-80 ... 100	1	9859250	2024.0001.01
CC-820	17 / 10*	200	3000	1.2 / 1.2 / 1.2 / 1.1 / 0.9 / 0.6	-80 ... 100	1	9859251	2025.0001.01
CC-820w	17 / 10*	200	3000	1.2 / 1.2 / 1.2 / 1.1 / 0.9 / 0.6	-80 ... 100	1	9859252	2025.0002.01
CC-902	5	150	1500	1.2 / 1.2 / 1.2 / 1.1 / 0.9 / 0.6	-90 ... 200	1	9857400	2026.0005.01
CC-905	26 / 15*	200	3000	2.0 / 2.0 / 2.0 / 1.9 / 1.7 / 1.0	-90 ... 200	1	9859253	2027.0001.01
CC-905w	26 / 15*	200	3000	2.0 / 2.0 / 2.0 / 1.9 / 1.7 / 1.0	-90 ... 200	1	9859254	2027.0002.01
CC-906w	30 / 19*	200	3000	3.0 / 3.0 / 3.0 / 2.8 / 2.4 / 1.6	-90 ... 200	1	9859255	2036.0001.01

Type CC-805

Bath capacity 5L

Bath tank depth 150mm

Heating capacity 1500W

Cooling capacity KW at 0.5 / 0.5 / 0.5 / 0.4 / 0.3 / 0.3100/20/0/-20/-40/-60°C

Working Temp. range -80 ... 100°C

Cat. No. 9.859 250

Type CC-820

Bath capacity 17 / 10*L

Bath tank depth 200mm

Heating capacity 3000W

Cooling capacity KW at 1.2 / 1.2 / 1.2 / 1.1 / 0.9 / 0.6100/20/0/-20/-40/-60°C

Working Temp. range -80 ... 100°C

Cat. No. 9.859 251

Type CC-820w

Bath capacity 17 / 10*L

Bath tank depth 200mm

Heating capacity 3000W

Cooling capacity KW at 1.2 / 1.2 / 1.2 / 1.1 / 0.9 / 0.6100/20/0/-20/-40/-60°C

Working Temp. range -80 ... 100°C

Cat. No. 9.859 252

Type CC-902

Bath capacity 5L

Bath tank depth 150mm

Heating capacity 1500W

Cooling capacity KW at 1.2 / 1.2 / 1.2 / 1.1 / 0.9 / 0.6100/20/0/-20/-40/-60°C

Working Temp. range -90 ... 200°C

Cat. No. 9.857 400

Type CC-905

Bath capacity 26 / 15*L

Bath tank depth 200mm

Heating capacity 3000W

Cooling capacity KW at 2.0 / 2.0 / 2.0 / 1.9 / 1.7 / 1.0100/20/0/-20/-40/-60°C

Working Temp. range -90 ... 200°C

Cat. No. 9.859 253

Type CC-905w

Bath capacity 26 / 15*L

Bath tank depth 200mm

Heating capacity 3000W

Cooling capacity KW at 2.0 / 2.0 / 2.0 / 1.9 / 1.7 / 1.0100/20/0/-20/-40/-60°C

Working Temp. range -90 ... 200°C

Cat. No. 9.859 254

Type CC-906w

Bath capacity 30 / 19*L

Bath tank depth 200mm

Heating capacity 3000W

Cooling capacity KW at 3.0 / 3.0 / 3.0 / 2.8 / 2.4 / 1.6100/20/0/-20/-40/-60°C

Working Temp. range -90 ... 200°C

Cat. No. 9.859 255

*with displacement insert
