Kern & Sohn

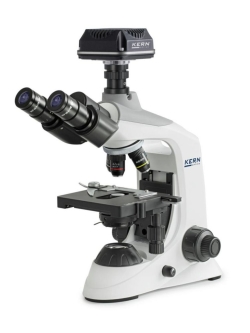

Transmitted light microscope-digital set OBE, with C-mount camera

The set is the comprehensive digital solution for school, training and laboratory.

  • Tube 30° inclined, 360° rotatable
  • Diopter adjustment at one eyepiece tube
  • Coaxial pre-and fine focussing
  • ABBE 1,25 N.A. condensor focussed with aperture diaphragm
  • Dimmable 3 W LED illumination


Scope of supply:
Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Revolving nosepiece:4-fold
Magnification eyepieces:HWF 10x/18 mm
Inclination angle tube:30°
Type of illumination:Transmitted light
Light type:LED
Interpupillary distance:48 ... 75 mm
Condenser:Abbe N.A. 1,25
Resolution camera:5.1 MP
Sensor:CMOS 1/2,5"
Stage (WxD):125 x 115 mm
Dimensions (WxDxH):320 x 180 x 365 mm
Weight:5.5 kg
Plug type:EU
Power supply:230 V, 50 Hz
Transmitted light microscope-digital set OBE, with C-mount camera


Transmitted light microscope-digital set OBE, with C-mount camera
X

Se ha añadido este artículo al carrito de la compra.

Transmitted light microscope-digital set OBE, with C-mount camera

seguir comprandoir al carrito de la compra

Otros clientes también compraron:

TypeTubeMagnification
objectives		InterfacesPKCat. No.ExistenciasRef. Fabricante
OBE 124C825Trinocular4x, 10x, 40xUSB 2.0 (6,8 ... 55 FPS)14691068OBE 124C825
OBE 124C832Trinocular4x, 10x, 40xUSB 3.0 (14,2 ... 101,2 FPS)14691069OBE 124C832
OBE 134C825Trinocular4x, 10x, 40x, 100xUSB 2.0 (6,8 ... 55 FPS)14691071OBE 134C825
OBE 134C832Trinocular4x, 10x, 40x, 100xUSB 3.0 (14,2 ... 101,2 FPS)16324983OBE 134C832
