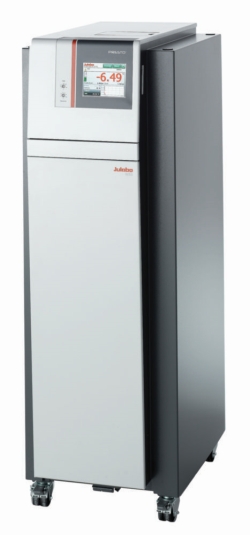

Highly dynamic temperature control systems PRESTO™, water-cooled Highly dynamic temperature control systems suitable for high-precision, external temperature control tasks, such as reactor temperature control, material tests, or temperature simulation.
Space-optimised, compact design Short heating and cooling times Large working temperature ranges without changing heat transfer media Minimized floor space due to side panels without ventilation slits 5.7" TFT touch screen SD card slot Interfaces for USB, Ethernet, RS232, Modbus Connections for alarm output, Pt100 external sensor, and standby-input ICC cascade temperature control Electronic level indicator Integrated programmer for 8 x 60 steps Class III (FL) acc. to DIN 12876-1
With water-cooled refrigerating machine W 41, W 93, and W 93x with natural refrigerants
X Item added to basket.
Highly dynamic temperature control systems PRESTO™, water-cooled
Type Temperature Temperature stability Max. flow rate Max. delivery Refrigerant Cooling Heating capacity Ext. dim. Power supply Weight Plug type IP code PK Cat. No. in Stock Manuf. Prod. No. W 40 -40 ... 250 °C ±0,01 ... ±0,05 40 1.7 1,2 2.7 330 x 590 x 670 mm 230 V, 50/60 Hz 78 IP 21 1 9857917 9421401 W 41 -45 ... 250 °C ±0,01 ... ±0,05 50 1.6 R1270 1,47 2.7 330 x 750 x 670 mm 230 V, 50 Hz 83 IP 20 1 4686944 9421411.N1 W 50 -50 ... 250 °C ±0,05 ... ±0,1 80 3 R452A 7,5 6 530 x 665 x 1,260 mm 400 V·3/N/PE, 50 Hz 210 CEE IP 20 1 4658069 9421502 W 50t -50 ... 250 °C ±0,05 ... ±0,1 80 3 R452A 7,5 12 530 x 665 x 1,260 mm 400 V·3/N/PE, 50 Hz 210 CEE IP 20 1 4658070 9421502.T W 80 -80 ... 250 °C ±0,01 ... ±0,05 40 1.7 1,2 1.8 430 x 650 x 1,260 mm 230 V, 50 Hz 159 EU IP 20 1 9857919 9421801 W 80t -80 ... 250 °C ±0,01 ... ±0,05 40 1.7 1,2 3.4 430 x 650 x 1,260 mm 400 V·3/N/PE, 50 Hz 164 CEE IP 20 1 9857921 9421801.T
Type W 40 Temperature -40 ... 250 °C Temperature stability ±0,01 ... ±0,05°C Max. flow rate 40l/min Max. delivery
pressure 1.7bar Refrigerant Cooling
capacity at 20 °C 1,2kW Heating capacity 2.7kW Ext. dim. 330 x 590 x 670 mm(WxDxH) Power supply 230 V, 50/60 Hz Weight 78kg Plug type IP code IP 21 Cat. No. 9.857 917 Type W 41 Temperature -45 ... 250 °C Temperature stability ±0,01 ... ±0,05°C Max. flow rate 50l/min Max. delivery
pressure 1.6bar Refrigerant R1270 Cooling
capacity at 20 °C 1,47kW Heating capacity 2.7kW Ext. dim. 330 x 750 x 670 mm(WxDxH) Power supply 230 V, 50 Hz Weight 83kg Plug type IP code IP 20 Cat. No. 4.686 944 Type W 50 Temperature -50 ... 250 °C Temperature stability ±0,05 ... ±0,1°C Max. flow rate 80l/min Max. delivery
pressure 3bar Refrigerant R452A Cooling
capacity at 20 °C 7,5kW Heating capacity 6kW Ext. dim. 530 x 665 x 1,260 mm(WxDxH) Power supply 400 V·3/N/PE, 50 Hz Weight 210kg Plug type CEE IP code IP 20 Cat. No. 4.658 069 Type W 50t Temperature -50 ... 250 °C Temperature stability ±0,05 ... ±0,1°C Max. flow rate 80l/min Max. delivery
pressure 3bar Refrigerant R452A Cooling
capacity at 20 °C 7,5kW Heating capacity 12kW Ext. dim. 530 x 665 x 1,260 mm(WxDxH) Power supply 400 V·3/N/PE, 50 Hz Weight 210kg Plug type CEE IP code IP 20 Cat. No. 4.658 070 Type W 80 Temperature -80 ... 250 °C Temperature stability ±0,01 ... ±0,05°C Max. flow rate 40l/min Max. delivery
pressure 1.7bar Refrigerant Cooling
capacity at 20 °C 1,2kW Heating capacity 1.8kW Ext. dim. 430 x 650 x 1,260 mm(WxDxH) Power supply 230 V, 50 Hz Weight 159kg Plug type EU IP code IP 20 Cat. No. 9.857 919 Type W 80t Temperature -80 ... 250 °C Temperature stability ±0,01 ... ±0,05°C Max. flow rate 40l/min Max. delivery
pressure 1.7bar Refrigerant Cooling
capacity at 20 °C 1,2kW Heating capacity 3.4kW Ext. dim. 430 x 650 x 1,260 mm(WxDxH) Power supply 400 V·3/N/PE, 50 Hz Weight 164kg Plug type CEE IP code IP 20 Cat. No. 9.857 921
